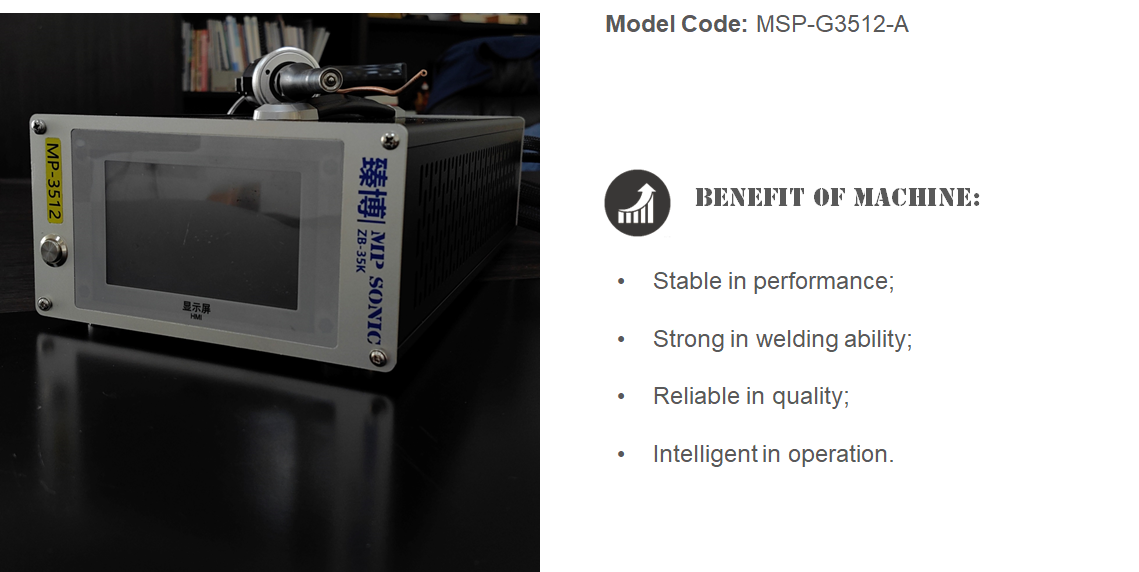

Handheld Ultrasonic Welder

Mold:

MSP-G3512

Size:

41*20*10.5

Weight:

6KG

Frequency:

35KHz (Other Option): 28KHz, 30KHz, 40KHz)

Power Output:

800~1200W

Power Source:

220V，AC（Alternating Current），1P(Single Phase)，50/60Hz

Features:

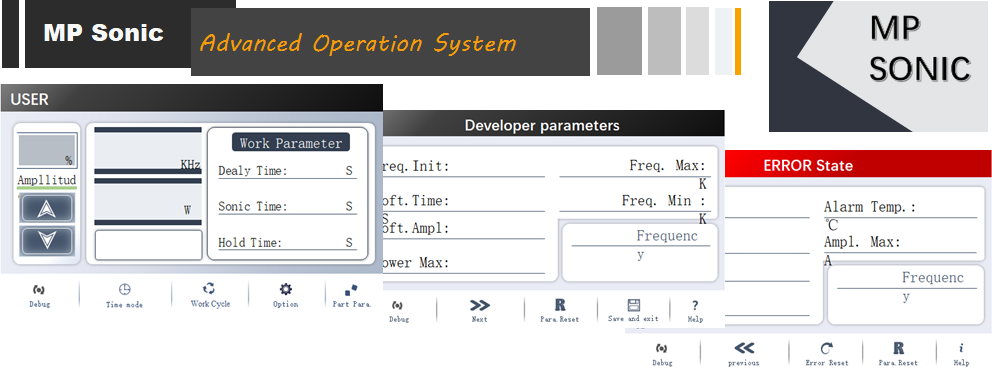

1.   HMI Digital control operation

2.   Two types of Ultrasonic control form for operation selection

3.     Weld Process control:3 steps

4.     Adjustable Amplitude

5.     Impedance analysis system

6.     Multiple Self-protection

7.     Time dynamic compensation

8.     Intelligent operation system:

      a.   Formula System

      b.   Welding Process Dynamic Supervision

      c.   Welding Record System

      d.   Alarm Record System

      e.   Equipment Operation Record (Diary)

      f.    Three Level Authorization Management
